10KW 20KW PMG Generator Permanent Magnet Alternator

Product DescriptionMagnet alternator 5kw 10kw magnetic generator free energy generator 20 kva for wind powerRare earth permanent magnet three-phase alternator is a new type of permanent magnet generator, which has a series of advantages such as small...
  • Parameter
  • Related products
  • Inquiry
Parameter
Product Description
Magnet alternator 5kw 10kw magnetic generator free energy generator 20 kva for wind power
10KW 20KW PMG Generator Permanent Magnet Alternator supplier
Rare earth permanent magnet three-phase alternator is a new type of permanent magnet generator, which has a series of advantages such as small size, light weight, high efficiency, and good characteristics.
Our horizontal wind generators generally use permanent magnet generator, which has a simple structure, low failure rate, and long service life.
Technical Parameter
Model
ESG-3000
ESG-5000
ESG-10K
ESG-20K



Rated power
3kw
5kw
10kw
20kw



Rated voltage
120v/220v/240v/380v (Accept customization)



Rated speed/hz
300rpm/50hz
300rpm/50hz
300rpm/50hz
300rpm/50hz



Generator diameter
350mm
350mm
350mm
350mm



Generator length
185mm
185mm
305mm
465mm



Shaft diameter
50mm
50mm
50mm
50mm



Generator type
Rare earth permanent magnet three-phase alternator



Rated torque
95.5 N*m
160 N*m
319 N*m
637N*m



The number of poles
20
20
20
20



Conversion efficiency
≥90%



Insulation class
F



Magnetic steel material
Rare earth neodymium NdFeB



Temperature rises
<70℃



Operating temperature
-40℃-120℃



Lubrication method
Grease is added



Service life
≥25 years

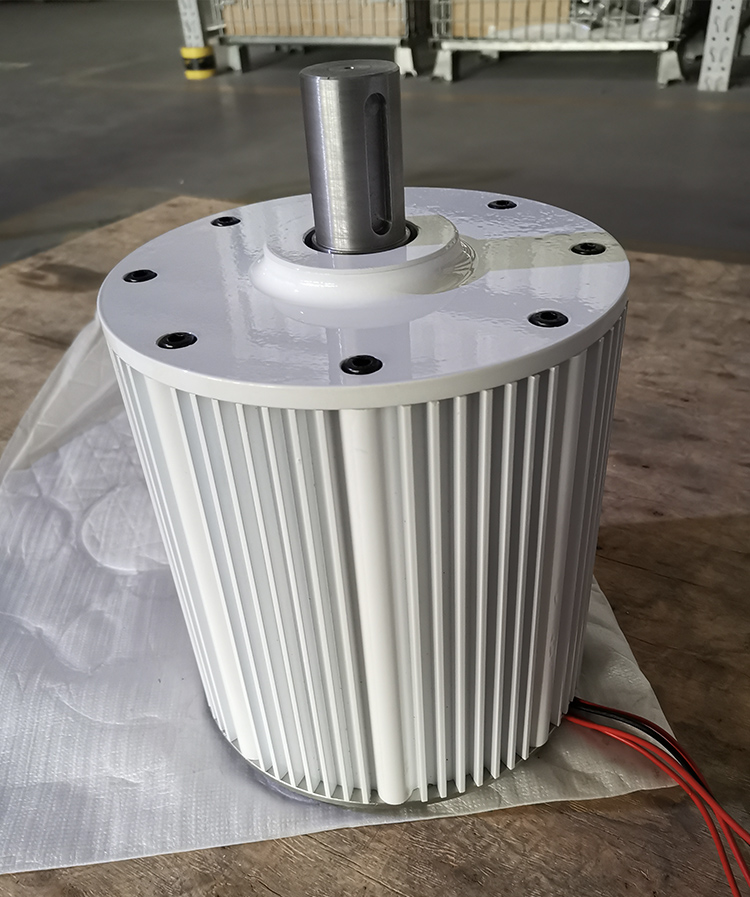

10KW 20KW PMG Generator Permanent Magnet Alternator manufacture

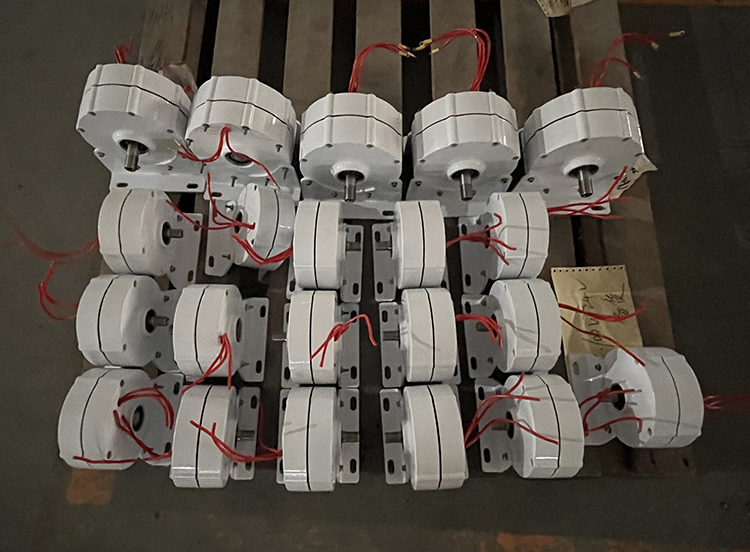

10KW 20KW PMG Generator Permanent Magnet Alternator details
10KW 20KW PMG Generator Permanent Magnet Alternator manufacture

Magnet alternator 5kw 10kw magnetic generator free energy generator 20 kva for wind power

Compared with traditional generators, permanent magnet synchronous generators do not require collector rings and brush devices, have a simple structure, and reduce the failure rate.
After using rare earth permanent magnets, the air gap magnetic density can be increased, and the motor speed can be increased to the optimal value, improving the power to mass ratio.
Details Images

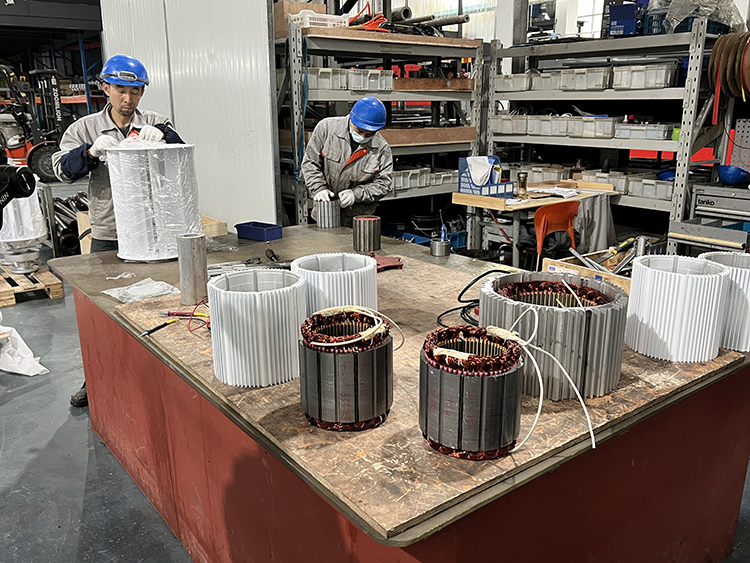

10KW 20KW PMG Generator Permanent Magnet Alternator factory

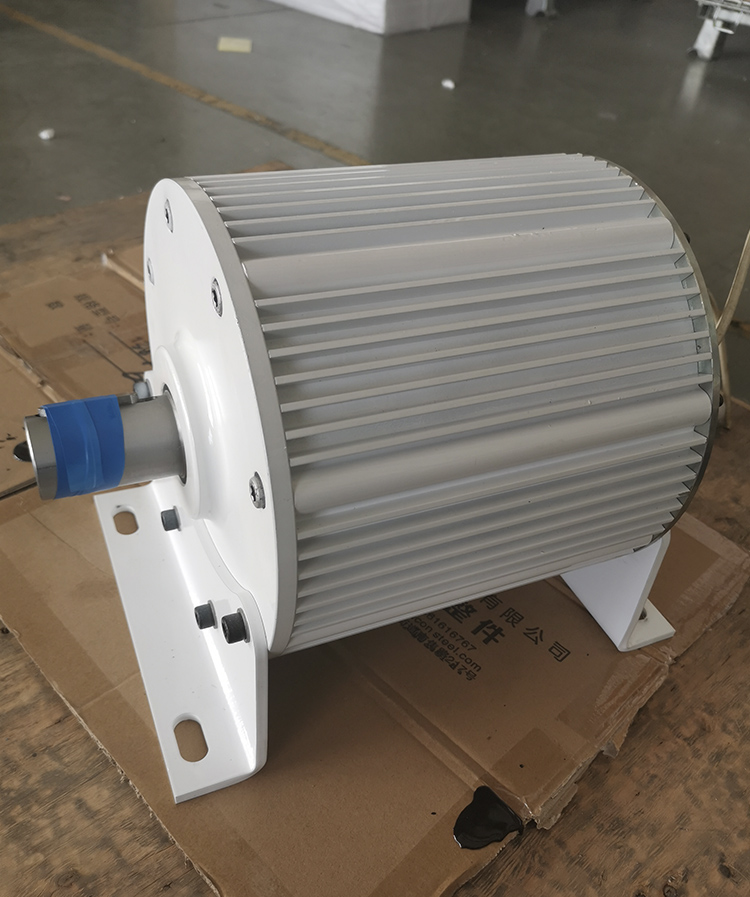

10KW 20KW PMG Generator Permanent Magnet Alternator details

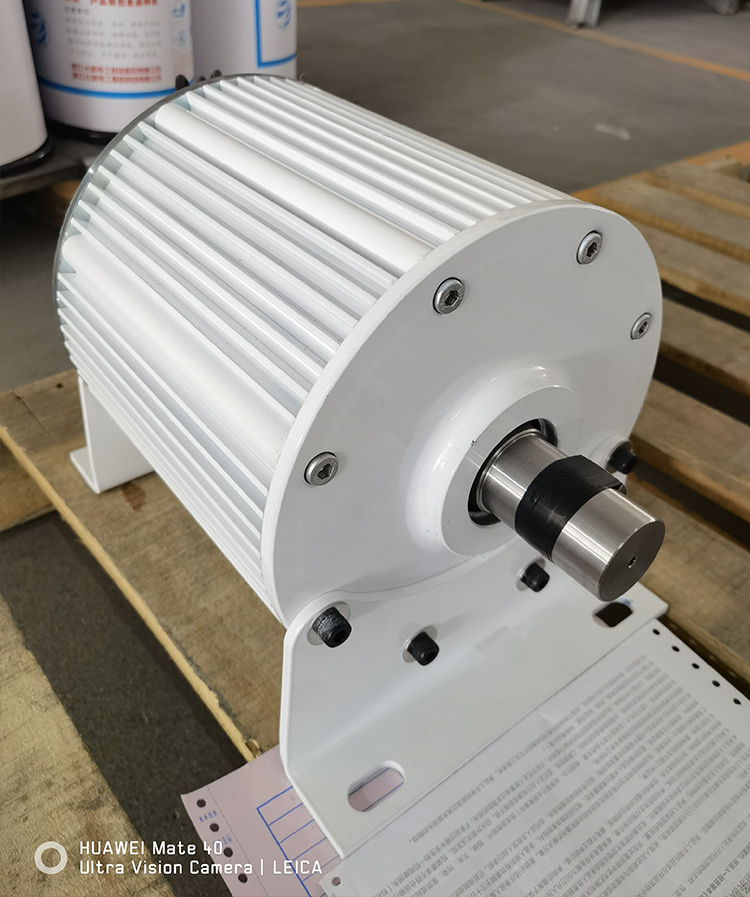

10KW 20KW PMG Generator Permanent Magnet Alternator supplier

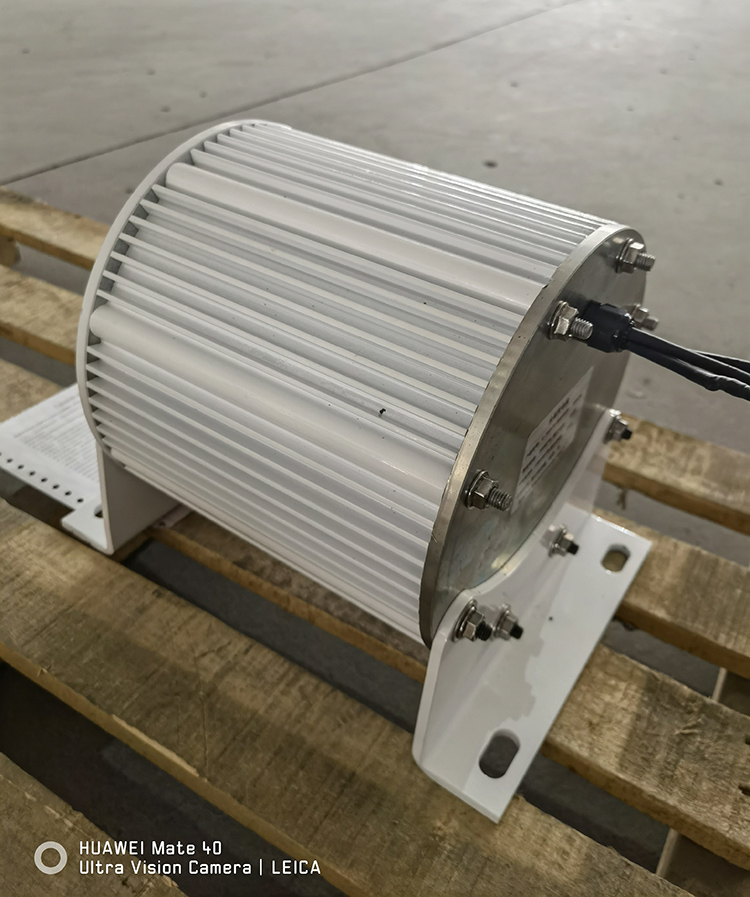

10KW 20KW PMG Generator Permanent Magnet Alternator manufacture

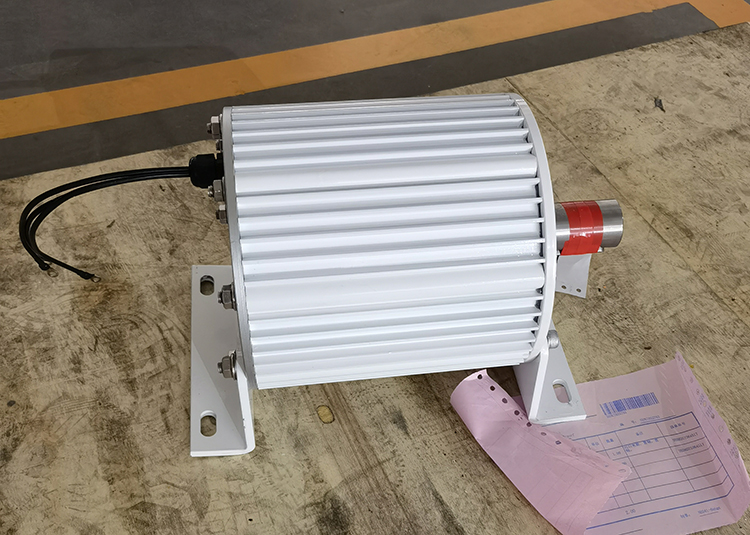

10KW 20KW PMG Generator Permanent Magnet Alternator manufacture
Recommend Products

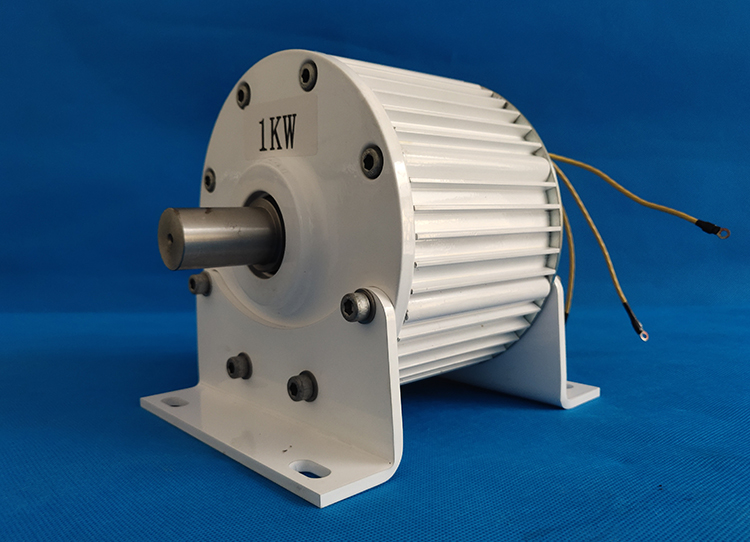

10KW 20KW PMG Generator Permanent Magnet Alternator factory

All types of our wind generator

We mainly have several types of wind turbine generator above, as well as solar wind turbine system.
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft.
Company Profile
10KW 20KW PMG Generator Permanent Magnet Alternator factory

Jiangsu DHC environmental SI-Tech Co.,Ltd,

Jiangsu DHC Environment Si-Tech Co.,Ltd. was founded in 2016 and is located in Suzhou City, Jiangsu Province. We are dedicated in environmental protect area and new energy products, and launched our own brand: Ever Saving and Qianyue, aiming at protecting the environment and saving energy. We have a wealth of industry experience and are a reliable supplier. Our cooperation factory has advanced production equipment and skilled front-line employees. The products are more safer and durable, with better appearance design, distinctive materials.
10KW 20KW PMG Generator Permanent Magnet Alternator supplier
Packing & Delivery
10KW 20KW PMG Generator Permanent Magnet Alternator factory
Knowing that the development of the company depends on the innovation and quality of the products, we have established a quality management system to meet the requirements of the international quality management system. With continuously releasing the original innovations according to the market and customer needs, our company always maintains the novelty and innovative products to take the customer's thoughts and urgency into consideration. Providing excellent service for customers and meeting customer needs are our eternal pursuit!
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Do you need solutions for wind generator?

Just send inquiry and express your requirement, DHC technical engineer always at your service!




The Magnet alternator 5kw 10kw magnetic generator free energy generator twenty kva through Jiangsu DHC is a high-grade item developed for wind power. It harnesses the power of the wind towards create cleanse, sustainable energy that is free coming from hazardous discharges.


Obtainable in 2 different dimensions, along with choices for 5kw or even 10kw. The Magnet alternator has been actually developed along with top quality products towards guarantee robustness and reliability, creating it an option is remarkable utilize in distant places or even off-grid locations.


It is likewise inexpensive, guaranteeing you conserve effectively on energy sets you back in the long-run. Along with a solid market is magnetic it is efficient in creating twenty kva of power, creating it fit towards a variety of requests.


Utilize long-term magnetics towards produce energy, creating all of them dependable and effective. They are especially helpful in locations where energy is conventional may not be available or even limited. Using this generator, you don't have to stress over gas sets you back, that makes it a choice is cost-effective.


Furthermore, extremely simple towards set up and preserve, guaranteeing it exceeds assumptions in concerns towards effective efficiency. It has an individual handbook and directions that are unobstructed setup and maintenance, that creates it ideal for DIY lovers.


Understood for his/her high-top premium items and ingenious innovation, creating specific the Magnet alternator is a choice is credible. The brand name is proud it personal on their ability towards offer power is reliable towards clients, possessing a think about using sustainable energy resources.


The Magnet alternator 5kw 10kw magnetic generator free energy generator twenty kva through Jiangsu DHC is an amazing item for wind power that assurances cleanse, sustainable energy in addition to expense cost financial savings. The item has been developed along with top quality products towards guarantee durability and dependability, creating it ideal for utilize in locations without accessibility towards conventional power resources. As a market innovator in power services, the Jiangsu DHC brand name offers a credible item that provides on its own guarantee.
