300W 400W 800W 1KW 2KW Horizontal Axis Wind Turbine Generator

Jiangsu DHC  If you're someone who's buying dependable and efficient method of getting power, you can be enthusiastic about the acquisition that is hot 1000w 24V/48V/96V horizontal axis efficient wind mill generator from Jiangsu DHC. T...
  • Parameter
  • Related products
  • Inquiry
Parameter

Jiangsu DHC



If you're someone who's buying dependable and efficient method of getting power, you can be enthusiastic about the acquisition that is hot 1000w 24V/48V/96V horizontal axis efficient wind mill generator from Jiangsu DHC. The merchandise is made to harness the normal energy regarding the wind and transform it into neat and renewable power to power your property or company  little.



Using this wind that is specific generator, it is possible to enjoy free and sustainable power that will help you save money by yourself power bills in the run that is very long. The Jiangsu DHC unit is straightforward to put in and run, rendering it a user-friendly and solution that is economical many who want to change to an even more power source  environmental-friendly.



The generator is sold with three voltage that is significantly different, so that you can select the one that's most suitable for your requirements. A farm, or maybe a workshop, the 1000w wind generator can provide your property or company with sufficient electricity to  generally meet along with your day-to-day requirements whether you own a cottage that is little.



One of the most remarkable top features associated with Jiangsu DHC wind mill generator is its axis  horizontal design and can recapture more wind from all instructions. The generator can cause greater power yields even in lower wind rates as being a outcome. Which means you could have a return  investment that is high recover your initial investment faster than with other systems.



The generator is established with top-notch materials being durable and resistant to weather that is harsh, such as for example strong winds, rainfall, and snowfall. With appropriate upkeep, you may expect the generator to endure for decades and deliver constant and power that is dependable.




Product Description
Hot Sale Residential 1000w 24V 48V 96V Horizontal Axis Efficient Wind Turbine Generator

300w 400w 800w 1kw 2kw horizontal axis wind turbine generator-57

Our horizontal wind turbine have wind alignment devices that can rotate as the wind direction changes. For small horizontal wind generators, this type of wind alignment device uses a tail rudder, while for large wind turbines, a transmission device composed of wind direction sensing elements and servo motors is used
Technical Parameter
Model
M400
M500
M600
M800
M1000
M1500
M2000






Rated power
400w
500w
600w
800w
1kw
1.5kw
2kw






Rated voltage
12V/24V/48V

12/24/48V
24V/48V/96V

48V/96V



Start the wind speed
2m/s






Rated wind speed
12m/s






Safe wind speed
≤50m/s






Fan blade diameter
1.35m
1.55m
1.85/1.65m
2m
2.1m
2.2m
2.5m






Blade number
3/5 pcs




3 pcs


Blade material
Reinforced nylon fiber






Fuselage material
Reinforced die-cast aluminum






Magnetic steel material
NdFeB






Generator type
Three-phase AC permanent magnet synchronous generator






Control mode
Electromagnetic brakes






Wind direction adjustment
Automatically adjusts the windward angle






Service life
≥ 20 years






Degree of protection
IP54






Net weight
12kg
13kg
20kg
26kg
28kg
32kg
35kg






Gross weight
14kg
15kg
22kg
28kg
30kg
35kg
40kg






Packing size(mm)
930*400*215

1100*400*300
1150*400*300

1320*400*300




300w 400w 800w 1kw 2kw horizontal axis wind turbine generator-58

300w 400w 800w 1kw 2kw horizontal axis wind turbine generator-59

300w 400w 800w 1kw 2kw horizontal axis wind turbine generator-60

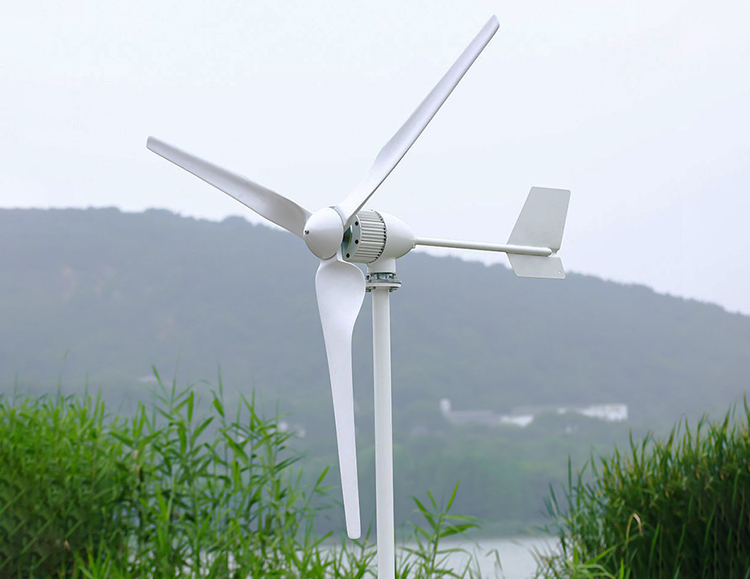

Hot Sale Residential 1000w 24V 48V 96V Horizontal Axis Efficient Wind Turbine Generator

The casing of the horizontal wind turbine is made of alloy aluminum or A3 steel, with small volume, light weight, beautiful appearance, and low operating vibration. Adopting flange installation, horizontal wind generator has good strength and is convenient for installation and maintenance. The horizontal wind turbine adopts nylon blades or reinforced fiberglass wind turbine blades, combined with optimized aerodynamic shape and structural design, with low starting wind speed, high wind energy utilization coefficient, and higher power generation efficiency compared to vertical axis fans
Details Images

300w 400w 800w 1kw 2kw horizontal axis wind turbine generator-61

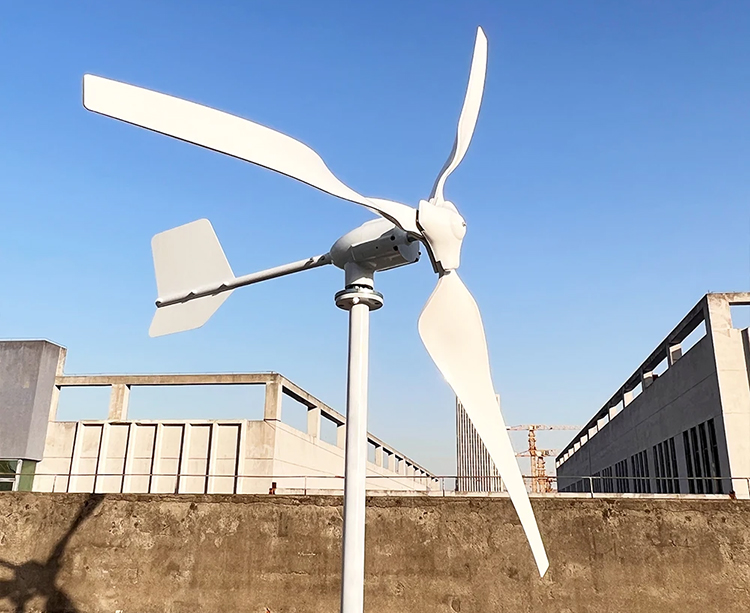

Hot Sale Residential 1000w 24V 48V 96V Horizontal Axis Efficient Wind Turbine Generator

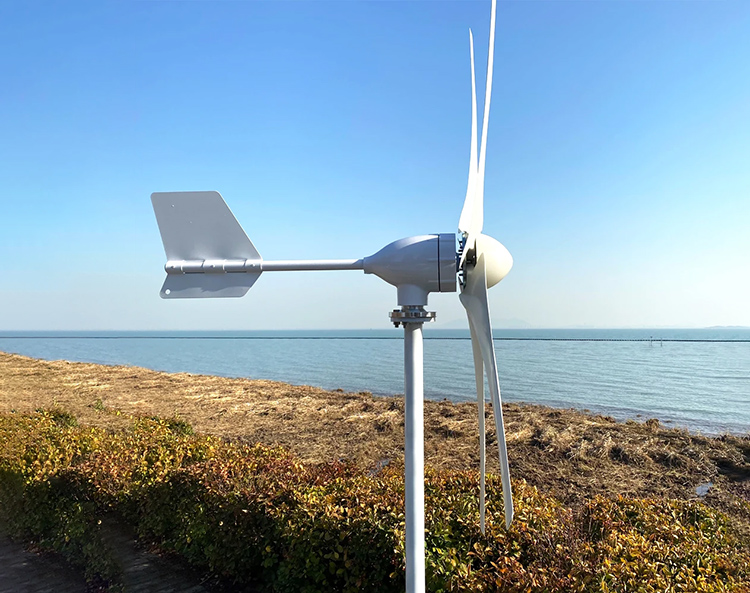

The tail rudder of horizontal wind generator adopts automatic windward and automatic yaw design, usually of straight or folded tail type, with strong typhoon resistance and safe and reliable operation
The 1kw wind turbine uses a patented permanent magnet rotor AC generator. The special stator and rotor design can effectively reduce the resistance torque of the generator

Optional maximum power tracking intelligent controller, effectively regulating current and voltage

300w 400w 800w 1kw 2kw horizontal axis wind turbine generator-62

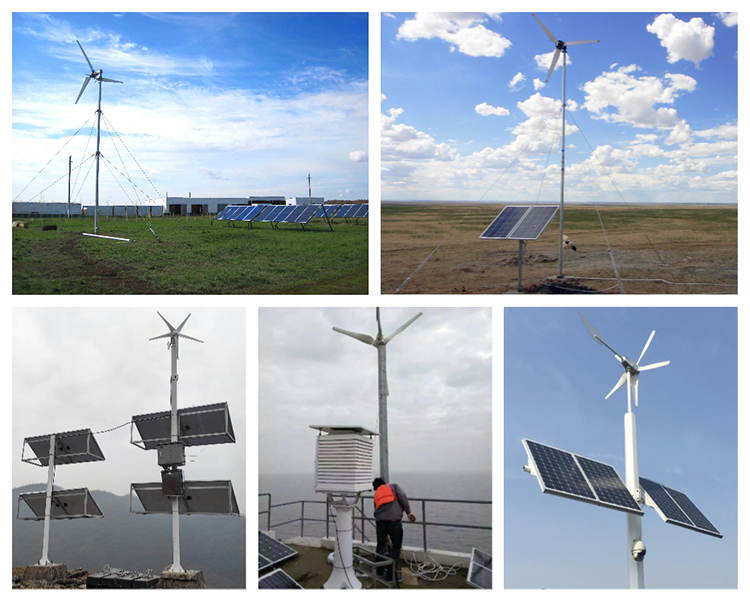

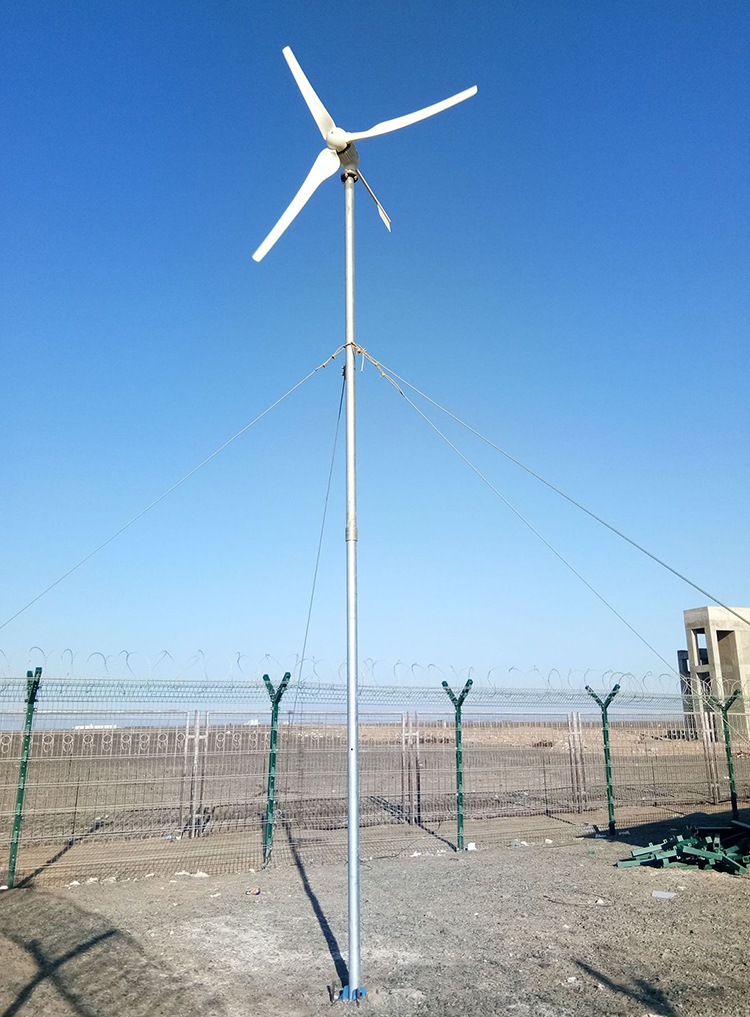

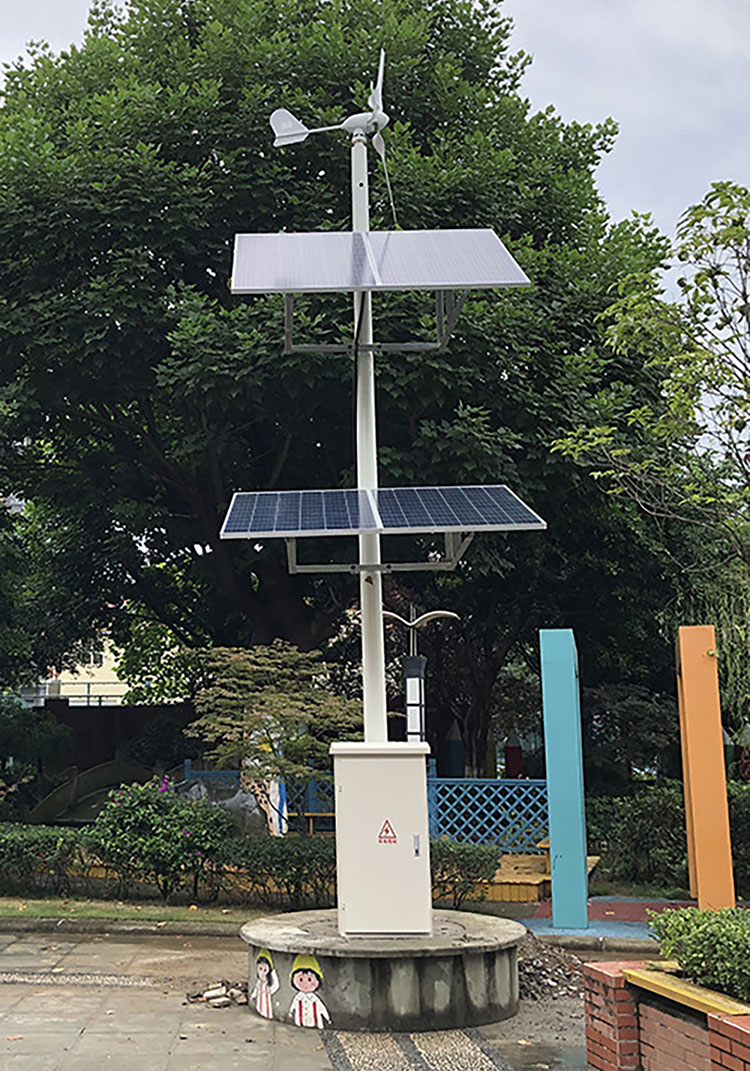

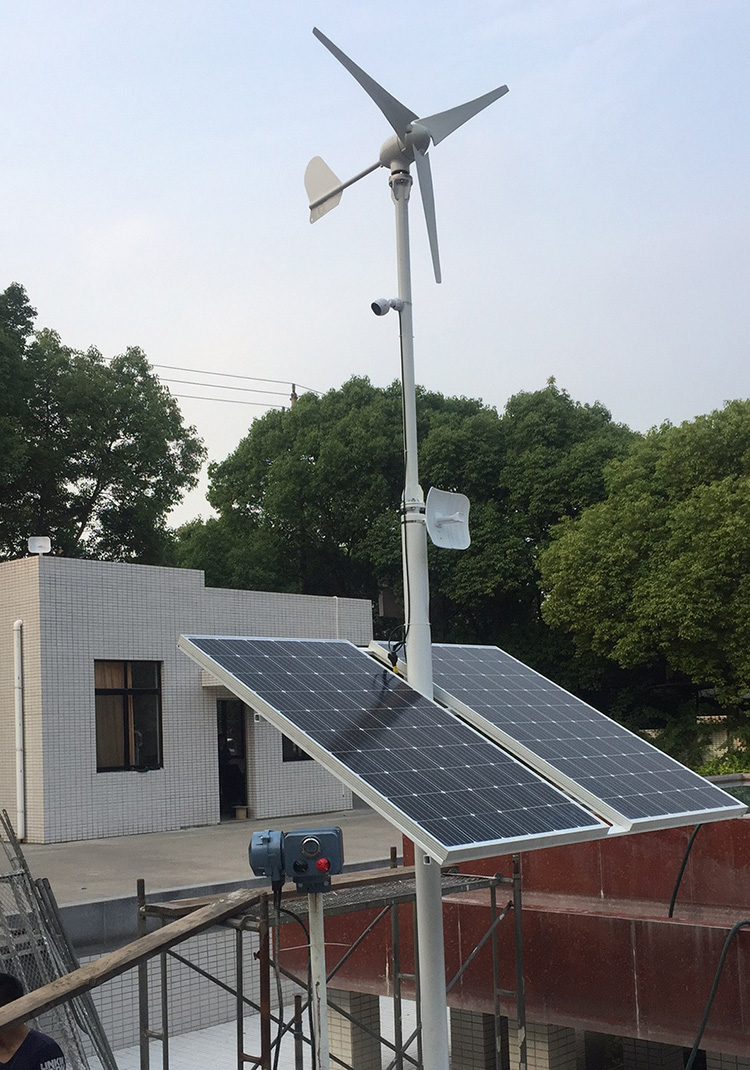

Project Cases

300w 400w 800w 1kw 2kw horizontal axis wind turbine generator-63

Project Case Display
Our company is committed to providing customers with one-stop services for wind and solar hybrid systems. The main products include 100w-100kw small and medium-sized wind generator, solar panel, photoelextric water heater and heating furnace, solar energy storage system, portable power station, etc Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions
Recommend Products

300w 400w 800w 1kw 2kw horizontal axis wind turbine generator-64

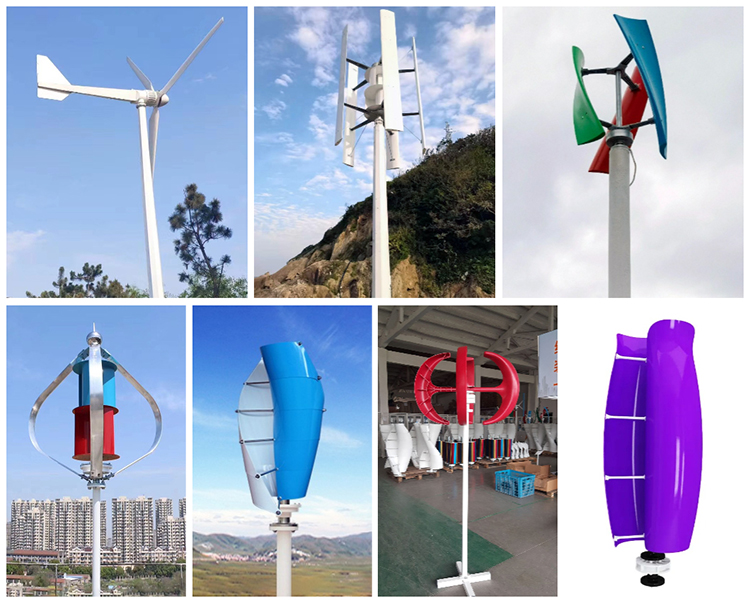

All types of our wind generator

We mainly have several types of wind turbine generator above, as well as solar wind turbine system
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft

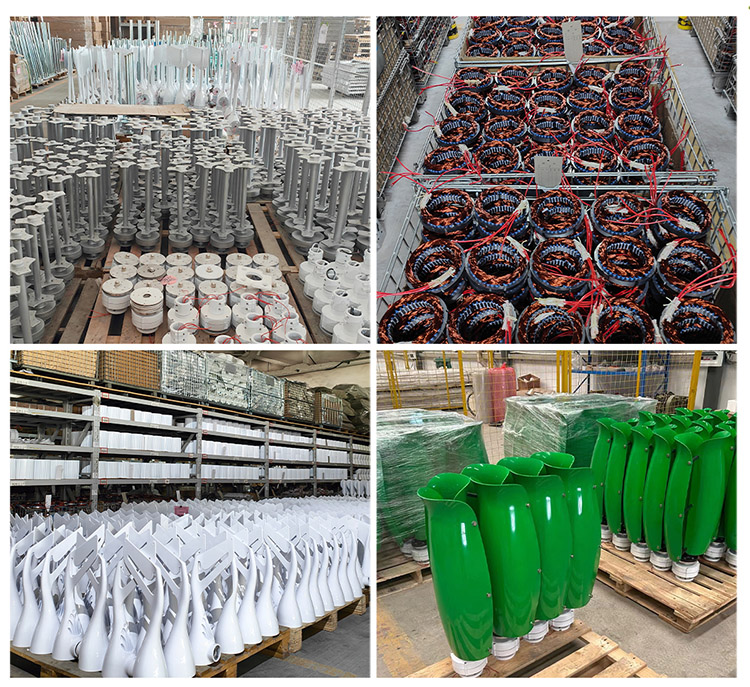

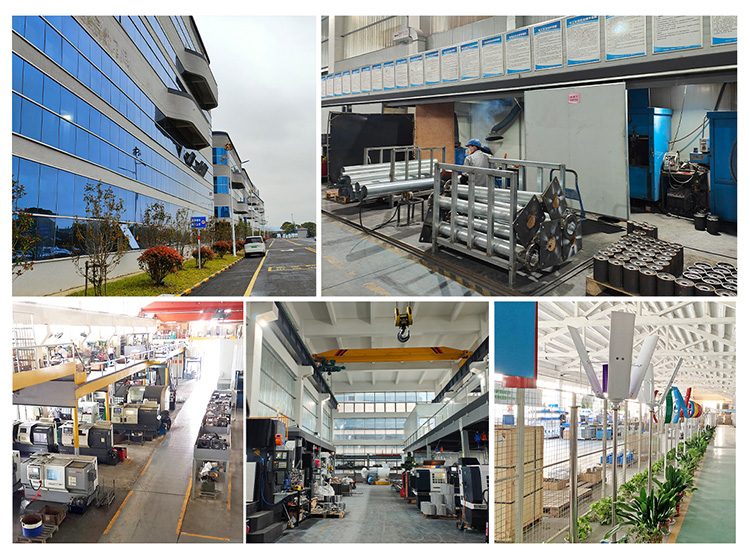

Company Profile

300w 400w 800w 1kw 2kw horizontal axis wind turbine generator-65

Jiangsu DHC environmental SI-Tech Co., Ltd

Jiangsu DHC Environment Si-Tech Co. ,Ltd. was founded in 2016 and is located in Suzhou City, Jiangsu Province. We are dedicated in environmental protect area and new energy products, and launched our own brand: Ever Saving and Qianyue, aiming at protecting the environment and saving energy. We have a wealth of industry experience and are a reliable supplier. Our cooperation factory has advanced production equipment and skilled front-line employees. The products are more safer and durable, with better appearance design, distinctive materials

300w 400w 800w 1kw 2kw horizontal axis wind turbine generator-66

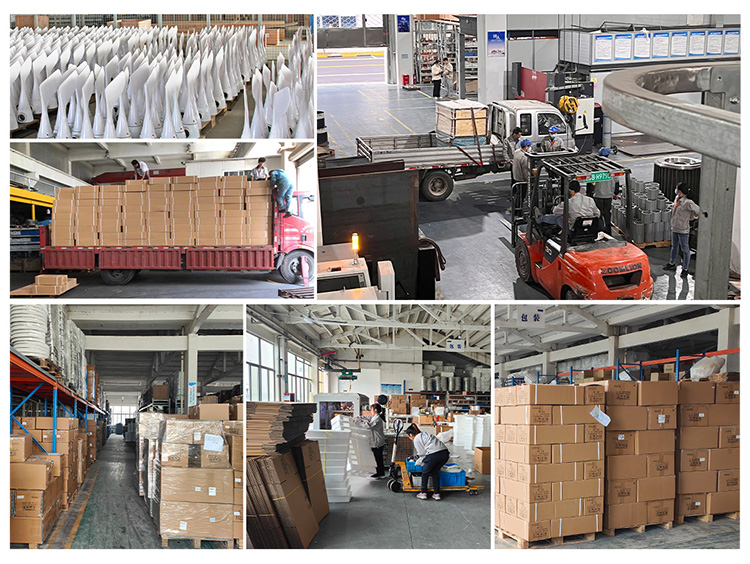

Packing & Delivery

300w 400w 800w 1kw 2kw horizontal axis wind turbine generator-67

Knowing that the development of the company depends on the innovation and quality of the products, we have established a quality management system to meet the requirements of the international quality management system. With continuously releasing the original innovations according to the market and customer needs, our company always maintains the novelty and innovative products to take the customer's thoughts and urgency into consideration. Providing excellent service for customers and meeting customer needs are our eternal pursuit!
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided
Business Card

300w 400w 800w 1kw 2kw horizontal axis wind turbine generator-68

Do you need solutions for solar wind turbine system
Just send inquiry and express your requirement, DHC technical engineer always at your service
