Single-phase 3KW -10 KW Wind Power Controller And Grid-tied Inverter Integrated Machine

Jiangsu DHC

The Single-phase 3KW Wind Power Controller and Grid-tied Inverter Integrated Machine is the answer that is clear is ideal anybody seeking to harness the potency of wind power and incorporate it with their house or company. The product  revolutionary created to convert the power created by wind generators into usable electricity you need to use to power your devices, illumination, and also other electronic devices.

This device that is built-in work to be used by having an array of little to medium-sized wind generators having a maximum wind mill ability of 3KW. Its high-level inverter that is grid-tied ensures that the vitality generated by the wind mill is given back when you look at the grid, supplying a competent and economical source that is electrical.

The Single-phase 3KW Wind Power Controller and Grid-tied Inverter Jiangsu DHC Integrated Machine was created to work seamlessly along with your current system that is electric making this a facile task to install and work out utilization of. Its lightweight size and design  lightweight for effortless transportation and installation, while its durable construction really helps to make certain that it's going to withstand the current weather and supply dependable performance for quite some time as time goes by.

This wind  advanced level controller and grid-tied inverter integrated machine is full of features built to optimize its performance as well as make it user friendly. Included in these are an LCD display that shows performance that is real-time, and a program that is user-friendly anyone to adjust settings and monitor performance with simplicity.

The Single-phase 3KW Wind Power Controller and Grid-tied Inverter Integrated Machine is sustained by the item quality and dependability you can expect through the Jiangsu DHC brand name along with its advanced features and effective performance. The Jiangsu DHC group has created this device that is built-in give a economical approach to utilize the vitality for the wind with many many years of expertise in renewable power items.

Product Description

Single-phase 3KW Wind Power Controller And Grid-tied Inverter Integrated Machine

ES-WWGI Series is wind power grid-tied controller&inverter integrated machine with MPPT function. It looks concise and can be easily operated

Technical Parameter

er’s specific demand

Model	ES-WWGI30	ES-WWGI50
Wind Turbine Input
Rated input power	3kW	5kW
Max. input power	4.5kW	7.5kW
Rated input voltage	240Vac
MPPT voltage range	60Vac~300Vac
Rated input current	7.2A
Max input current	10.8A
Cutting speed	60RPM（factory default，0-1499RPM settable）
Speed limit control	Electromagnetic speed limit
AC Output
Grid Type	Single-phase
Rated output power	3kW	5kW
Max output power	3.3kW	5.5kW
Rated Grid voltage	220Vac
Rated output current	13.6A	22.7A
General Parameters
Display mode	LED
Monitoring mode(optional)	RS485/GPRS
Efficiency	＞95%
Ambient temperature	-20℃～+40℃
Noise	≤65dB
Cooling mode	Natrual cooling
Cover protection class	IP65（dump load IP54）
Product reference dimension	416*536*250mm	416*536*250mm
Product reference weight	20kg	20kg

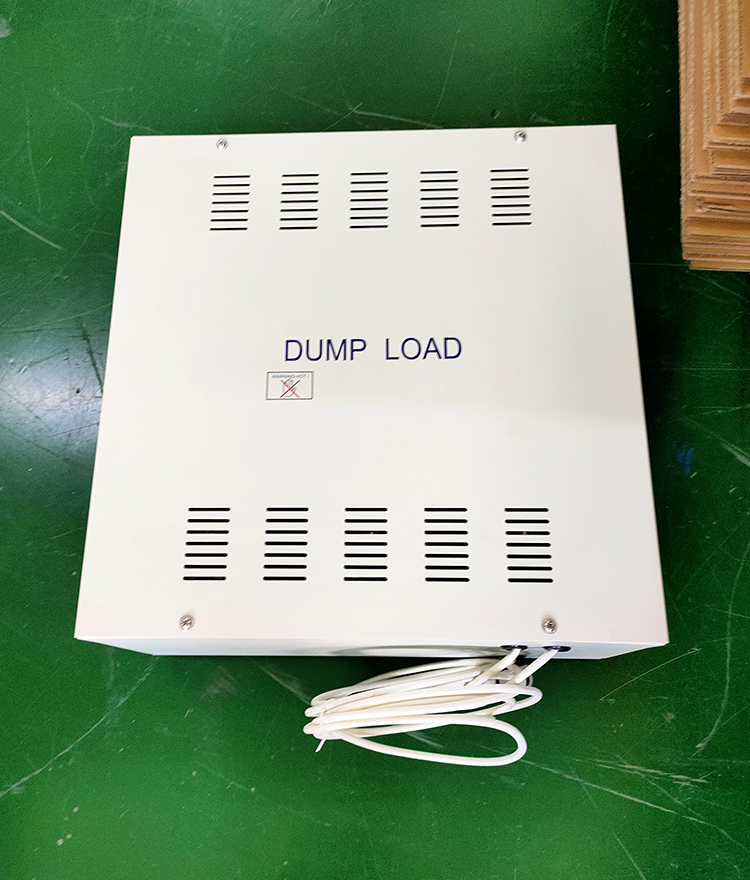

Dump load reference dimension	300*550*55mm	673*460*453mm
Dump load reference weight	14kg	40kg
Note: Part of parameters can be adjusted according to custom

Applications

- Distributed wind power grid-tied system - Solar&wind hybrid power grid-tied system - Wind power grid-tied system

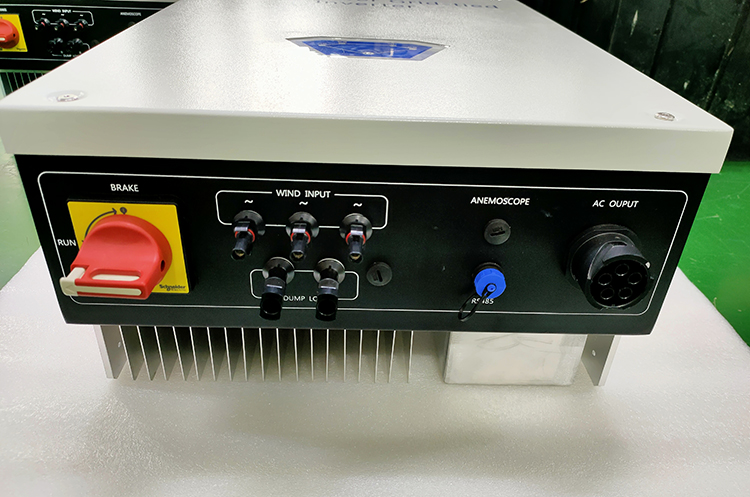

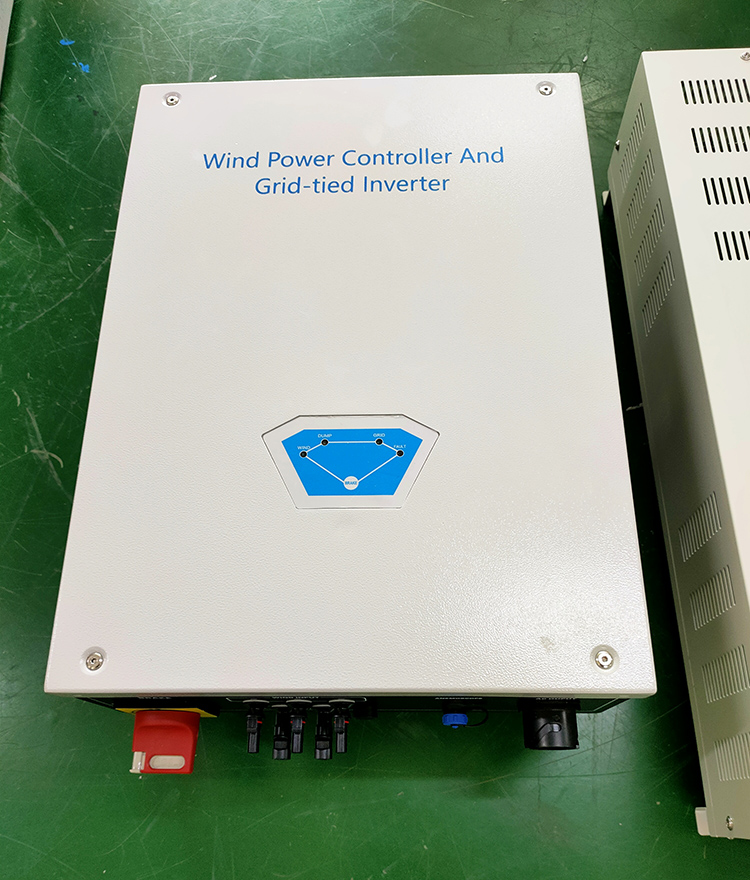

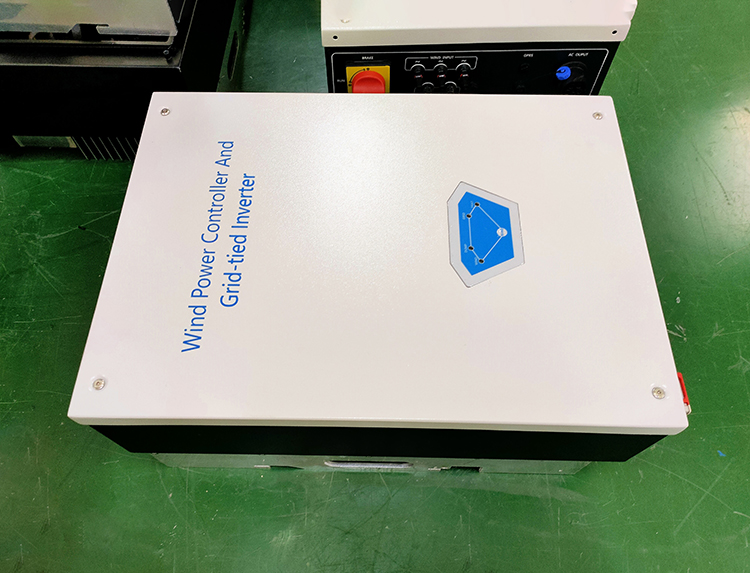

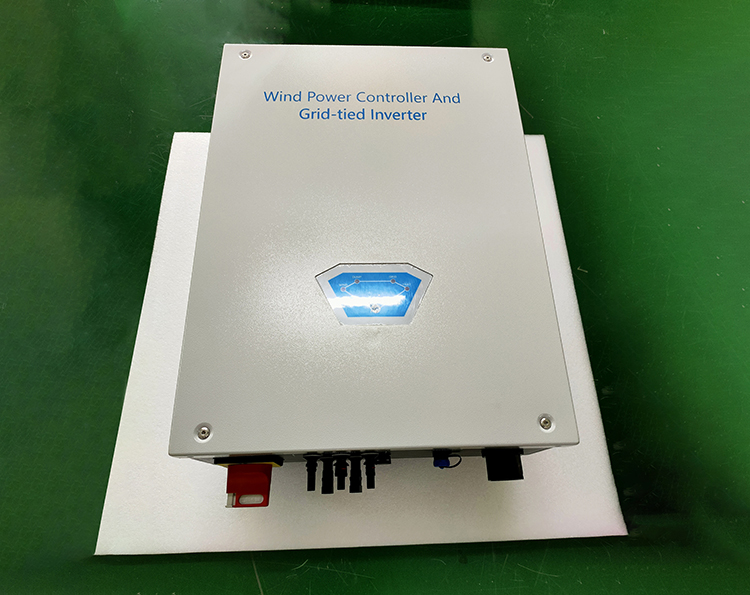

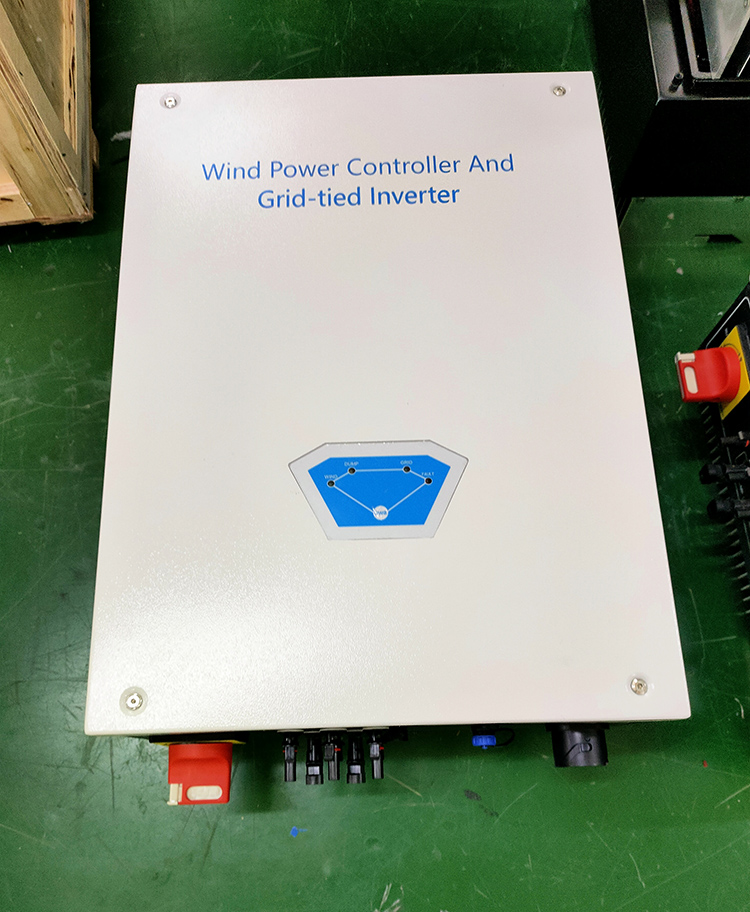

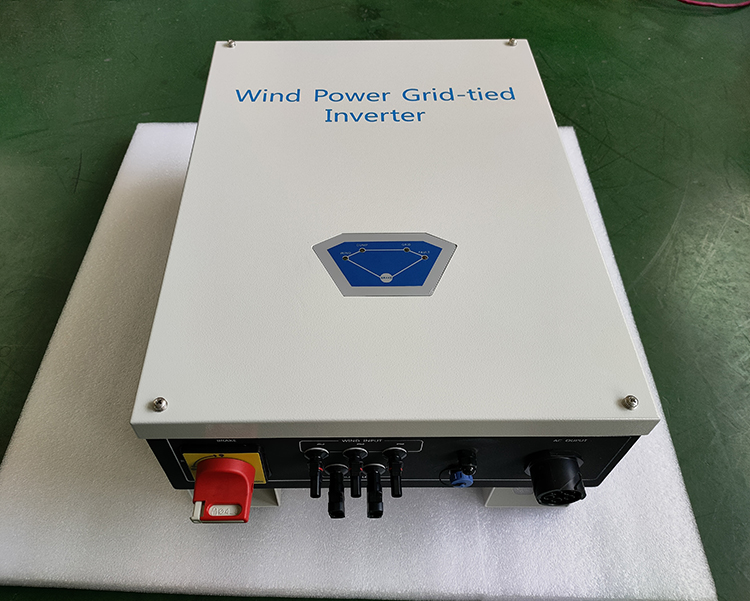

Details Images

Features

- Wind Controller&Inverter integrated machine

- MPPT included, and 30-point power curve can be settable

- Complete protection functions

- RS485 monitoring mode optional

Protection Functions

- Grid overvoltage/undervoltage protection

- Grid over/under frequency protection

- output short circuite protection

- Grid power failure protection

- Anti-islanding protection

- Over-temperature protection

- Lightning protection

- Residual current protection

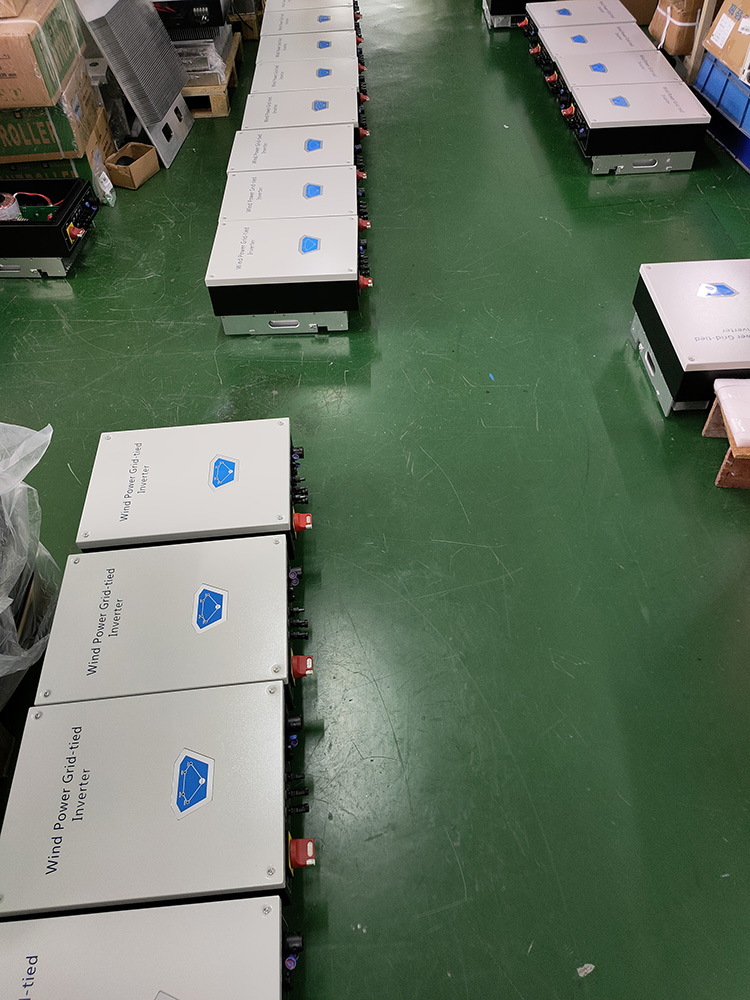

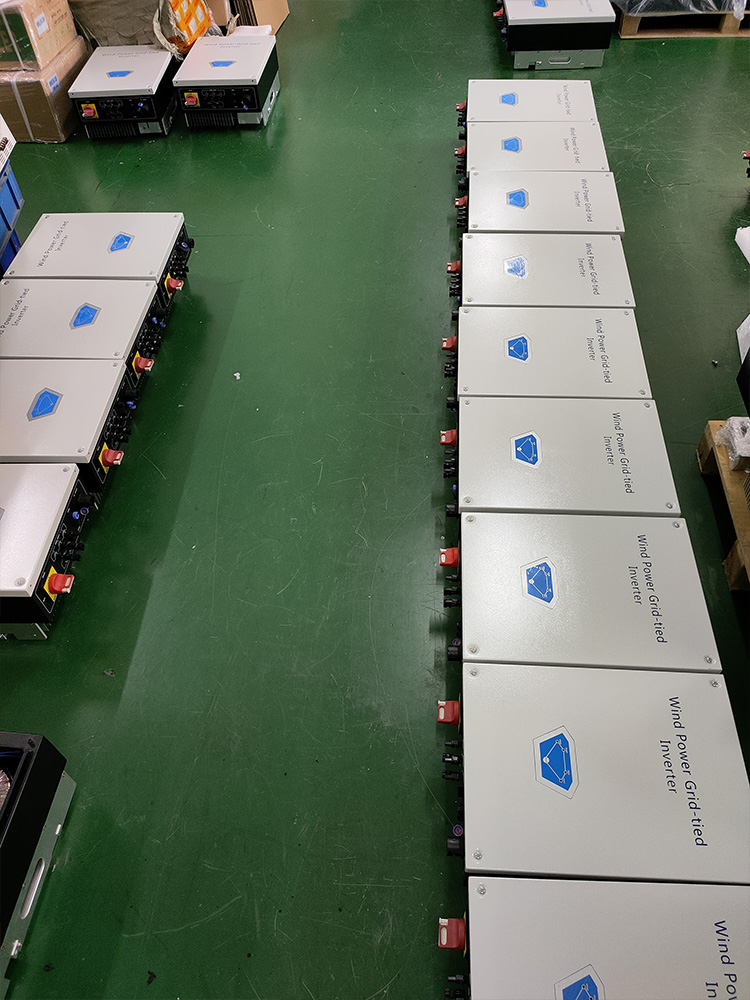

Project Cases

Project Case Display

Our company is committed to providing customers with one-stop services for wind turbine, solar panel, wind controller, inverter, battery. Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions

Recommend Products

All types of our wind generator

We mainly have several types of wind turbine generator above, as well as solar wind turbine system
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft

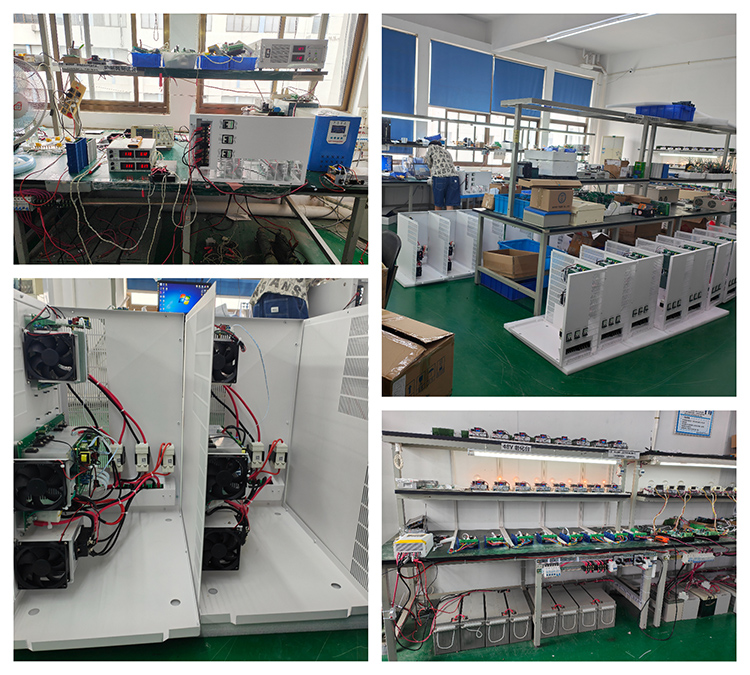

Company Profile

Jiangsu DHC environmental SI-Tech CoLtd

Jiangsu DHC Environment Si-Tech Co.，Ltd. was founded in 2016 and is located in Suzhou City, Jiangsu Province. We are dedicated in environmental protect area and new energy products, and launched our own brand: Ever Saving and Qianyue, aiming at protecting the environment and saving energy. We have a wealth of industry experience and are a reliable supplier. Our cooperation factory has advanced production equipment and skilled front-line employees. The products are more safer and durable, with better appearance design, distinctive materials

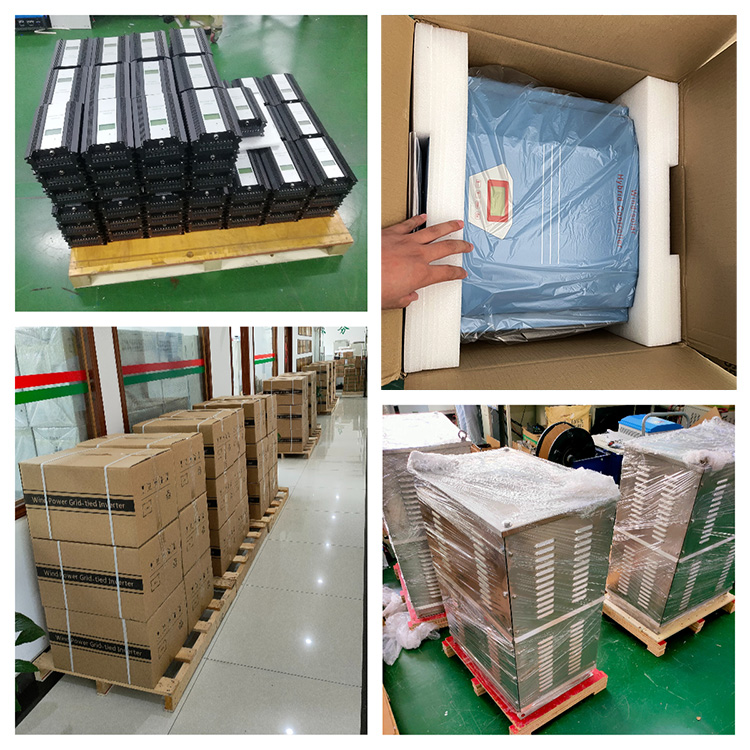

Packing & Delivery
