Three phase 3KW 5KW 10KW On Grid Wind Controller & Inverter with MPPT

Jiangsu DHC

DHC has brought you an item  great will help one to harness the effectiveness of wind and transform it into electricity. The CE 3KW Three stage On Grid Wind Controller and Inverter with MPPT function includes great benefits making it the best products and services available on the market.

This is a wind that is three-phase and inverter utilising the energy that is maximum monitoring (MPPT) function. The item is by using the ability of monitoring the utmost energy point for this wind mill, which doing your best with the production energy from the wind turbine utilizing the MPPT function.

The CE 3KW Three stage On Grid Wind Controller and Inverter is very simple to work with. It boils down insurance firms a clear and screen that is user-friendly making it super easy to arranged and run. In addition has LED indicators that demonstrate the status when it comes to system that is functional a look.

The product is trusted in wind generator systems that create electricity become given into the grid. The CE 3KW Three stage On Grid Wind Controller and Inverter works completely with wind generators that have a charged energy production all of the  option to 3KW.

The CE 3KW Three stage On Grid Wind Controller and Inverter is made to do business with harmony with wind mill systems which are many. It features a control that is sophisticated that guarantees the wind mill is efficient and dependable.

The security with this item is fully guaranteed. This has a computerized security system that may shut the wind mill system down in case there is certainly any fault or overload. These devices comes with lightning that is integrated to safeguard against any voltage surges.

Product Description

CE 3KW Three phase On Grid Wind Controller & Inverter with MPPT function

ES-WWGIT Series is wind power grid-tied controller & inverter integrated machine with MPPT function. It looks concise and can be easily operated

Technical Parameter

’s specific demand

Model	ES-WWGIT30	ES-WWGIT50
Wind Turbine Input
Rated input power	3kW	5kW
Max. input power	4.5kW	7.5kW
Rated input voltage	380Vac
MPPT voltage range	100Vac~450Vac
Rated input current	4.6A	7.6A
Max input current	6.9A	11.4A
Cutting speed	60RPM（factory default，0-1499RPM settable）
Speed limit control	Electromagnetic speed limit
AC Output
Grid Type	Three phase
Rated output power	3kW	5kW
Max output power	3.3kW	5.5kW
Rated Grid voltage	380Vac
Rated output current	4.4A	7.6A
General Parameters
Display mode	LED
Monitoring mode(optional)	RS485/GPRS
Efficiency	＞95%
Ambient temperature	-20℃～+40℃
Noise	≤65dB
Cooling mode	Natrual cooling
Cover protection class	IP65（dump load IP54
Product reference dimension	416*536*250mm	416*536*250mm
Product reference weight	20kg	20kg

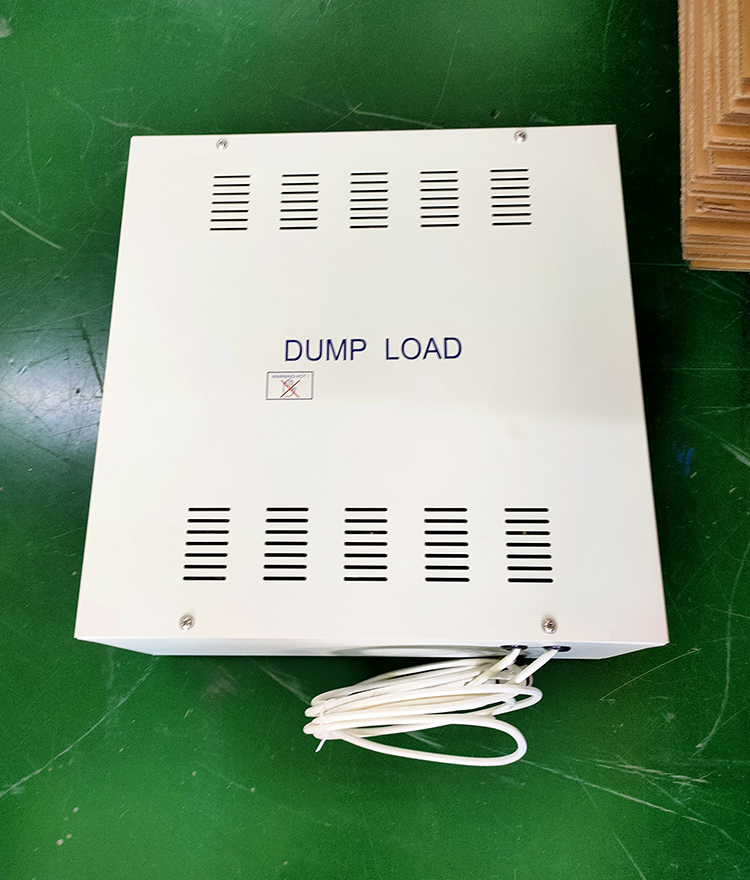

Dump load reference dimension	300*550*55mm	673*460*453mm
Dump load reference weight	14kg	40kg
Note: Part of parameters can be adjusted according to customer

Applications

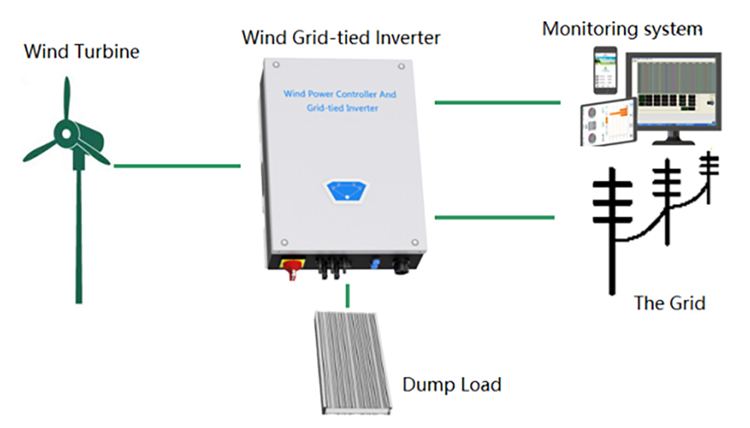

- Distributed wind power grid-tied system. - Solar & wind hybrid power grid-tied system. - Wind power grid-tied system

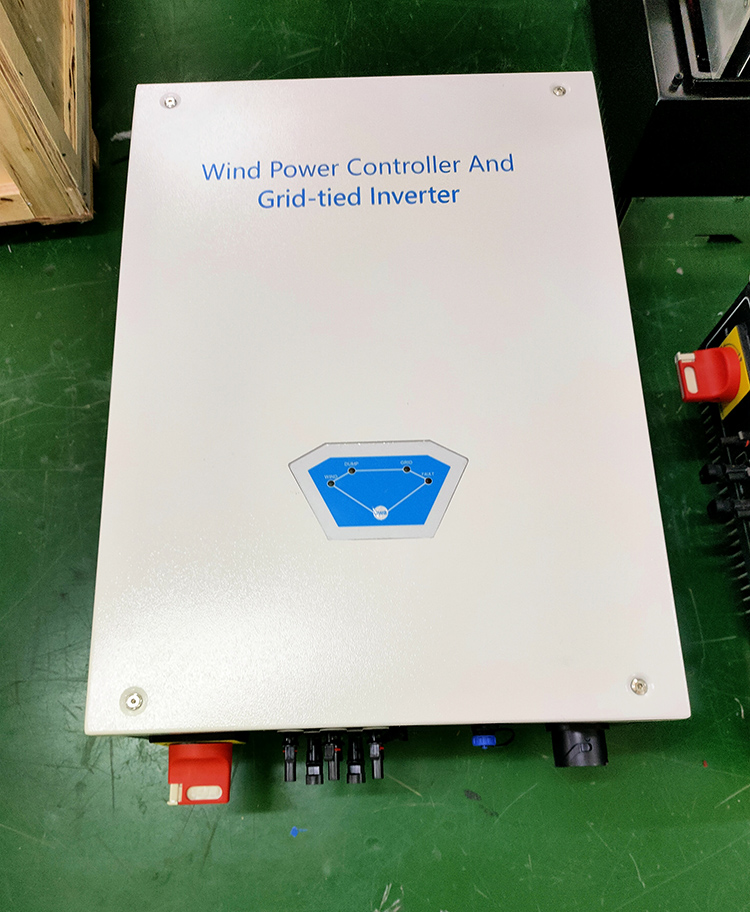

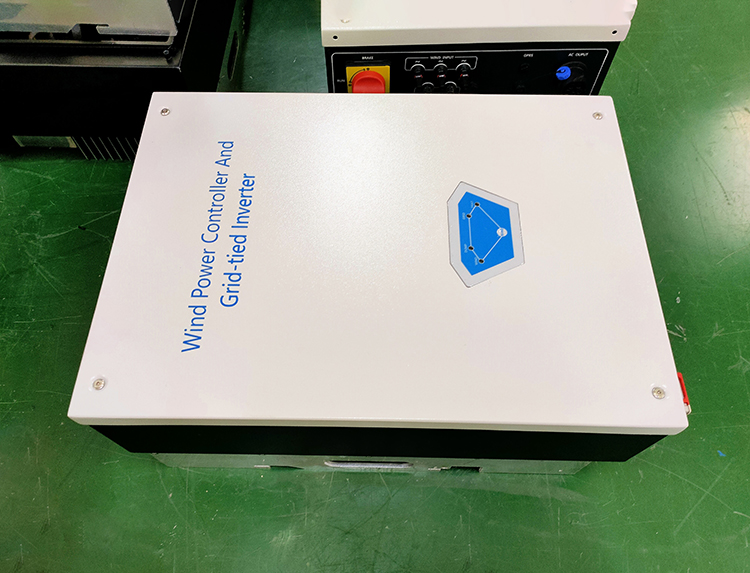

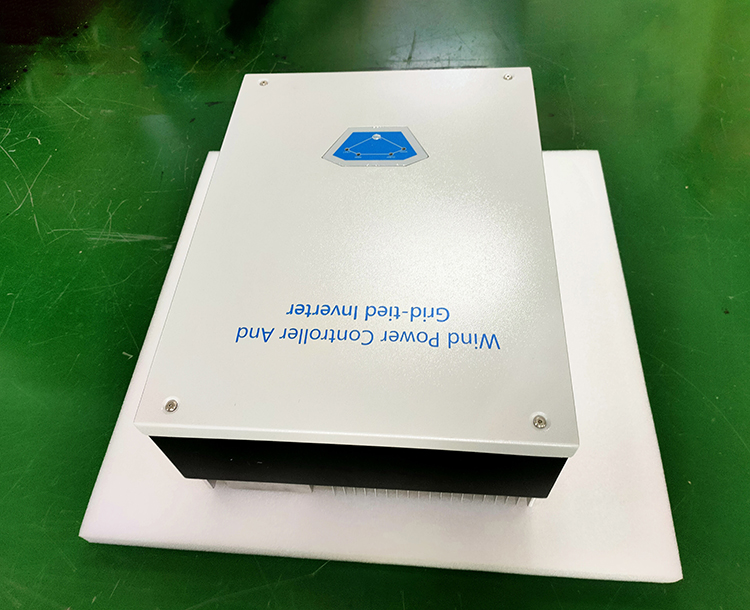

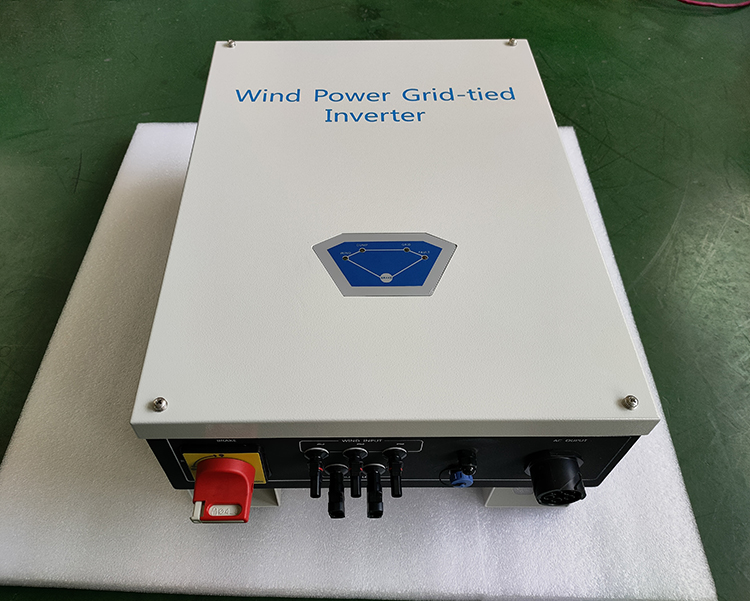

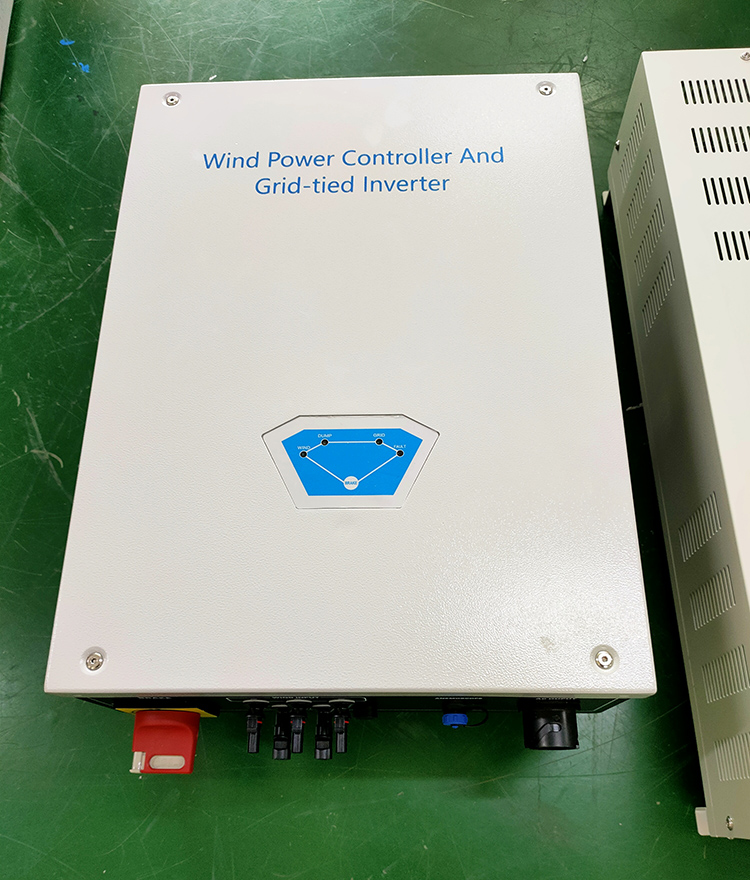

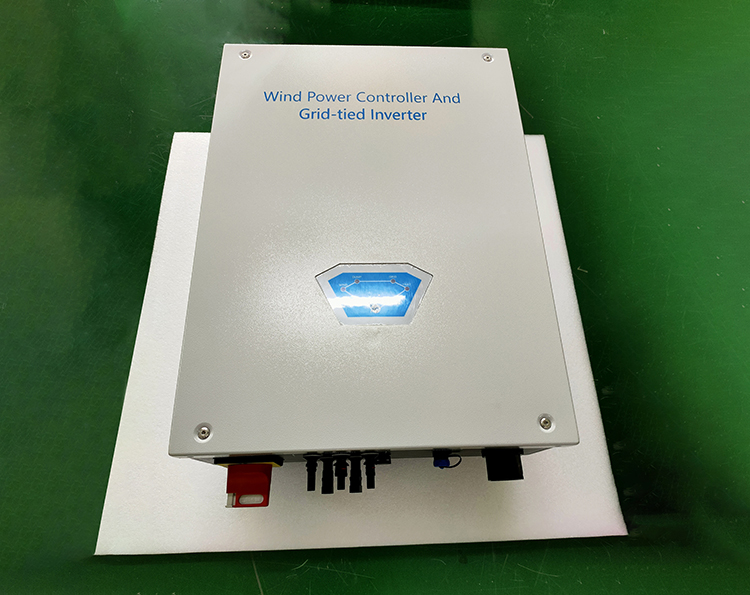

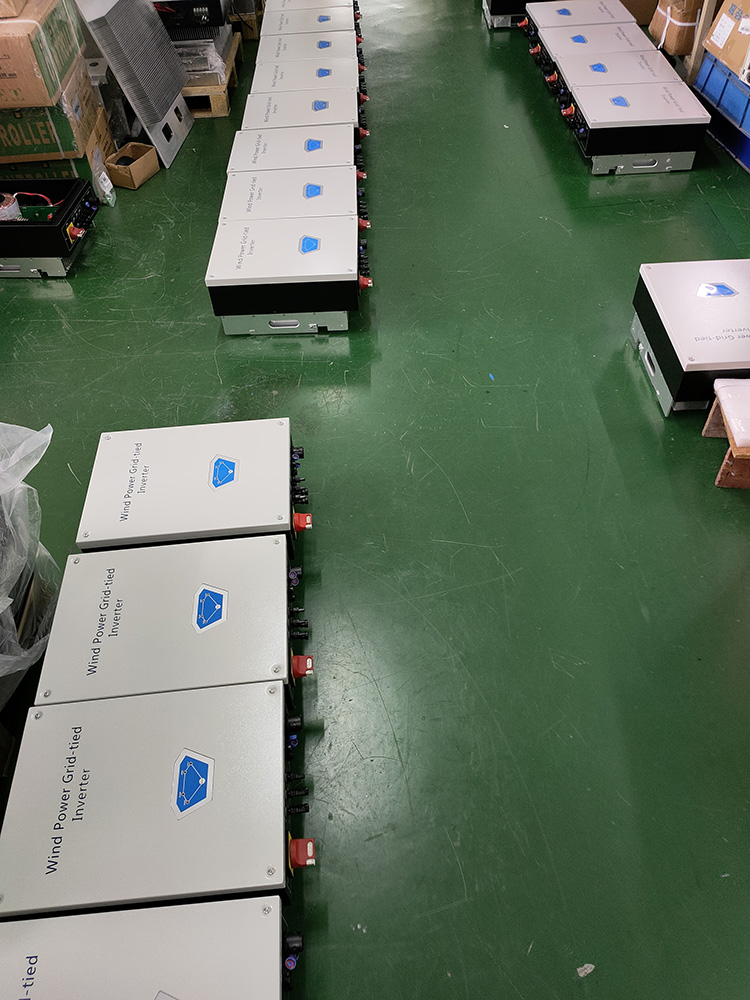

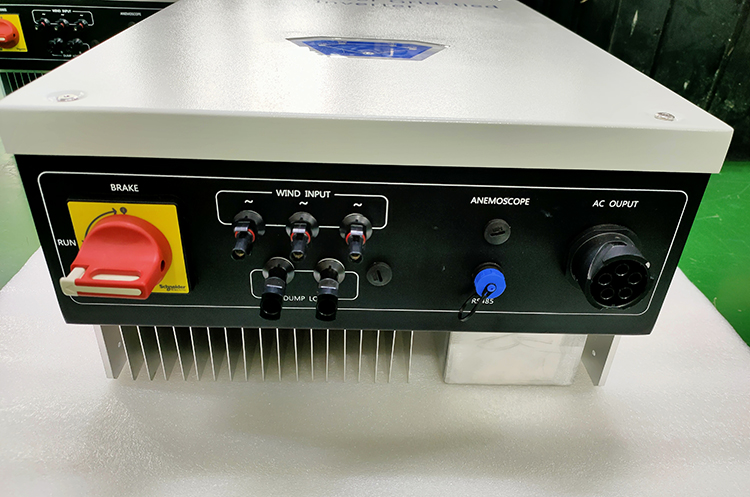

Details Images

Project Cases

Project Case Display

Our company is committed to providing customers with one-stop services for wind turbine, solar panel, wind controller, inverter, battery. Our company's products sold worldwide. The company has won the unanimous recognition of consumers with satisfactory quality and perfect after-sales service. We has a professional team, which can help you solve questions

Recommend Products

All types of our wind generator

We mainly have several types of wind turbine generator above, as well as solar wind turbine system.
The working principle of a wind turbine is relatively simple. The wind rotor rotates under the action of the wind, which converts the kinetic energy of the wind into the mechanical energy of the wind rotor shaft, and the generator rotates to generate electricity under the drive of the wind rotor shaft

Company Profile

Jiangsu DHC environmental SI-Tech Co., Ltd

Jiangsu DHC Environment Si-Tech Co. ，Ltd. was founded in 2016 and is located in Suzhou City, Jiangsu Province. We are dedicated in environmental protect area and new energy products, and launched our own brand: Ever Saving and Qianyue, aiming at protecting the environment and saving energy. We have a wealth of industry experience and are a reliable supplier. Our cooperation factory has advanced production equipment and skilled front-line employees. The products are more safer and durable, with better appearance design, distinctive materials

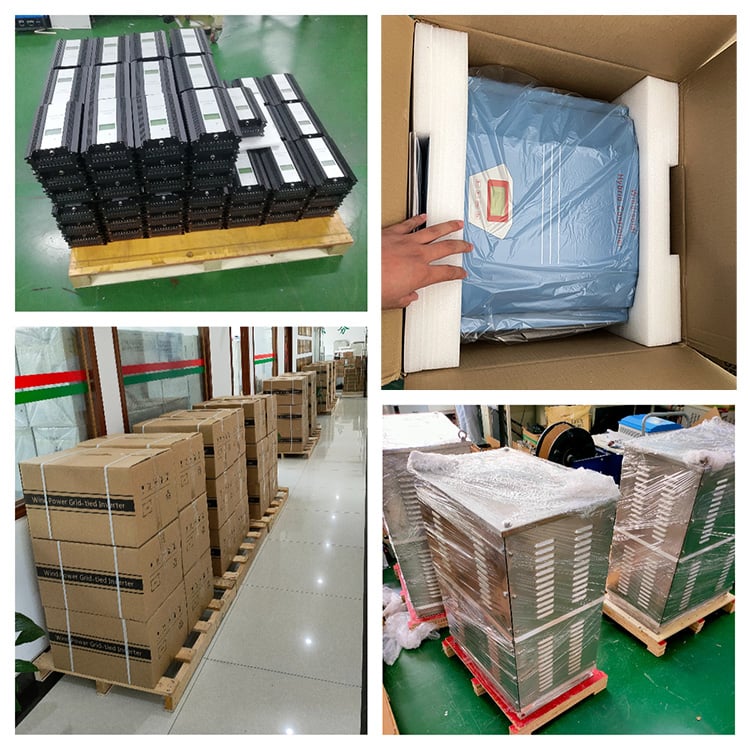

Packing & Delivery
