Types of Wind Turbines HAWT, VAWT and More Explained

The vast majority of wind turbines seen around the county on wind farms (both on-shore and off-shore) are standard 3 blade designs. However, a number of different styles/types of turbines exist and the way in which they harness kinetic energy from the wind is quite different.

The two main types of wind turbines are Horizontal-axis and Vertical-axis. Horizontal axis wind turbines have the rotating axis oriented horizontally. They typically feature 3-blades and are designed to face to the wind. Vertical axis wind turbines have the rotating axis aligned vertically and are designed to harnesses kinetic energy in the opposite direction.

Apart from horizontal axis and vertical axis wind turbines there are other iterations of the turbine that are worth exploring.

The most common type of wind turbine is the ‘Horizontal Axis Wind Turbine’ . It is referred to as a horizontal axis as the rotating axis lies horizontally (see diagram, below)

The horizontal axis wind turbines need to point directly into the wind to operate at maximum efficiency, and the whole head is designed to turn to face the wind. As the wind changes direction, so the head must turn (or ‘yaw’) to stay pointing into the wind.

Horizontal axis wind turbines are chosen for off-shore wind farms and on-shore wind farms where the land is largely flat and open, because they work more efficiently than vertical axis turbines in areas where the wind is not turbulent.

Built for Size

While there are plenty of small-scale horizontal axis wind turbines commercially available for energy conscious home owners, one of their big advantages is that they scale well for manufacture and can be built VERY BIG. This is another reason why they are used for wind farms. It is much more cost effective to build and operate one 10 megawatt (MW) turbine than five 2 MW turbines.

The largest wind turbine in the world (as of Summer 2021) is the Vestas V236 turbine, with a rated power output of 15 megawatts (MW). It has a blade rotor diameter of 236m – more than twice the height of the Statue of Liberty! One single rotation of its blades will provide enough electricity to run an average household for a day.

Vertical Axis Wind Turbines

A less efficient and less common turbine is the ‘Vertical Axis Wind Turbine’ . It is referred to as vertical axis as the rotating axis is aligned vertically upwards.

It is not possible to build vertical axis turbines at the large scales we see in horizontal axis turbine wind farms. The biggest vertical axis wind turbine ever built was the 110m tall, 3.8MW “ÉOLE” turbine in Quebec, Canada. However the rotor bearing failed in 1993 under the 880 ton weight it had to support. It has been non-operational since then, and is now a curiosity for tourists. It is highly unlikely anyone will try to build a vertical axis turbine bigger than this due to the engineering problems associated with directly supporting such heavy weights on a single bearing.

Built for Flexibility

Although smaller, the main advantage that vertical axis wind turbines have over horizontal axis is that they do not need to yaw. They collect wind energy from all directions all the time. Because of the way the blades are designed, they always spin the same direction, no matter where the wind is coming from.

This makes vertical axis wind turbines better at capturing wind energy in city rooftops and built up areas where turbulent wind is changing direction all the time.

Vertical axis wind turbines take up less room than an equivalent power Horizontal axis turbine, and are often chosen for areas where space is limited.

Different Types of VAWTs

There are two main designs of vertical axis wind turbines, called Savonius and Darrieus. These designs are quite different in the way they capture the wind energy.

Savonius VAWTs

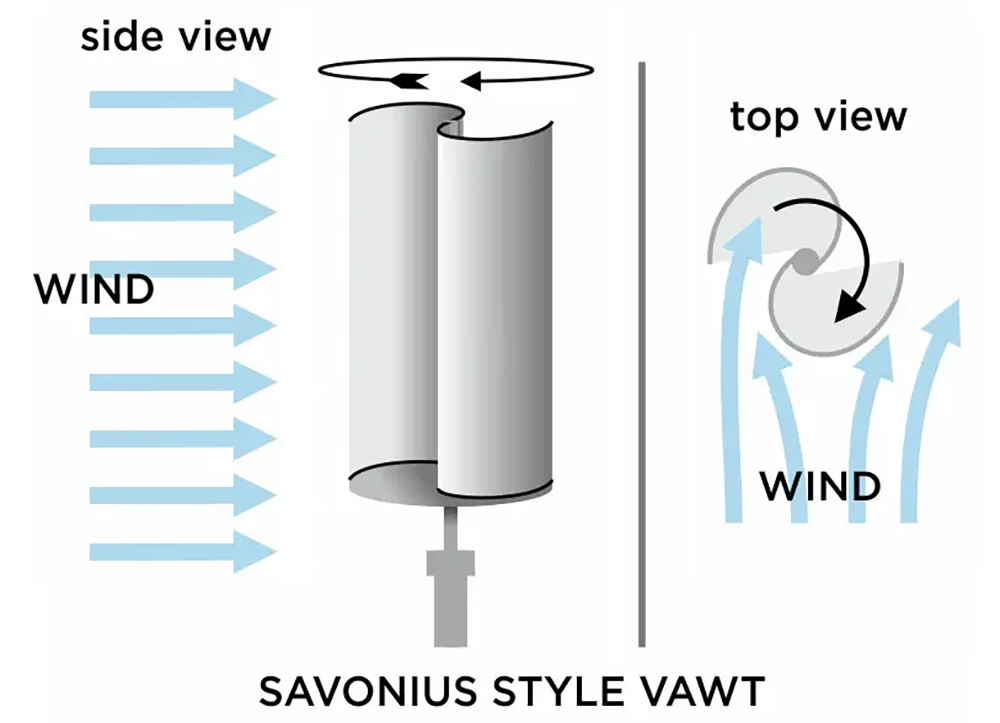

Savonius style vertical axis wind turbines use the principle of drag to convert wind energy into mechanical rotational energy. They work like a scoop, shaped to trap the wind entering the turbine, creating drag and thus forcing it to rotate (see diagram, below). No matter which direction the wind is coming from, it will always hit both the front and back of the scoop – but the rounded back of the scoop creates less drag, thereby allowing the turbine to rotate. However, this does mean that a Savonius vertical axis wind turbine can only convert at best 15% of the wind energy into mechanical rotational energy.

Darrieus VAWTs

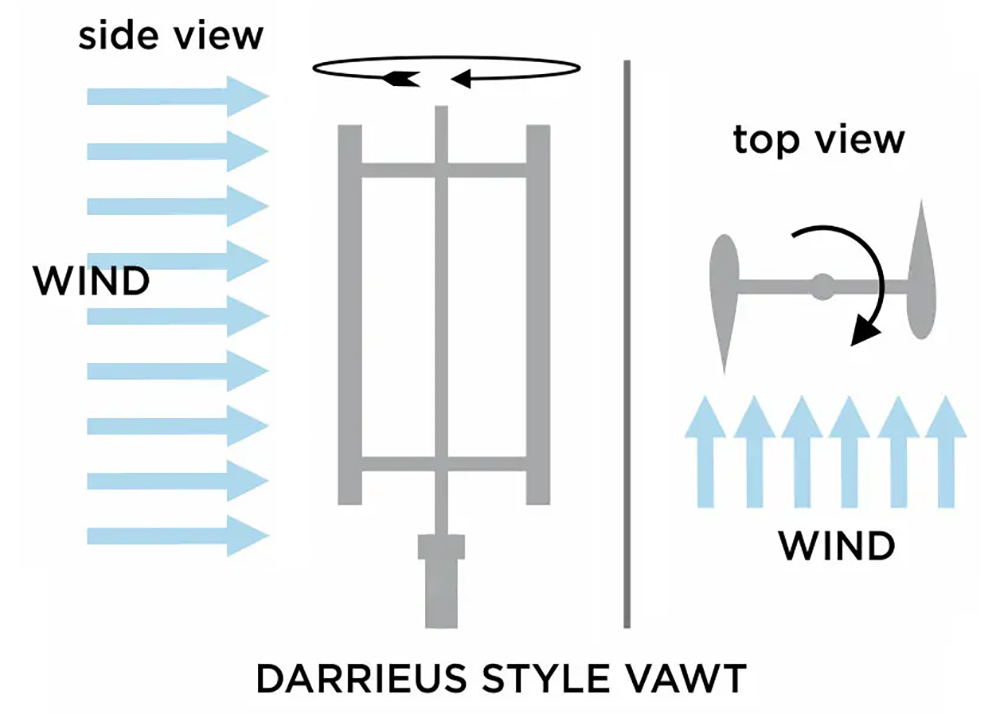

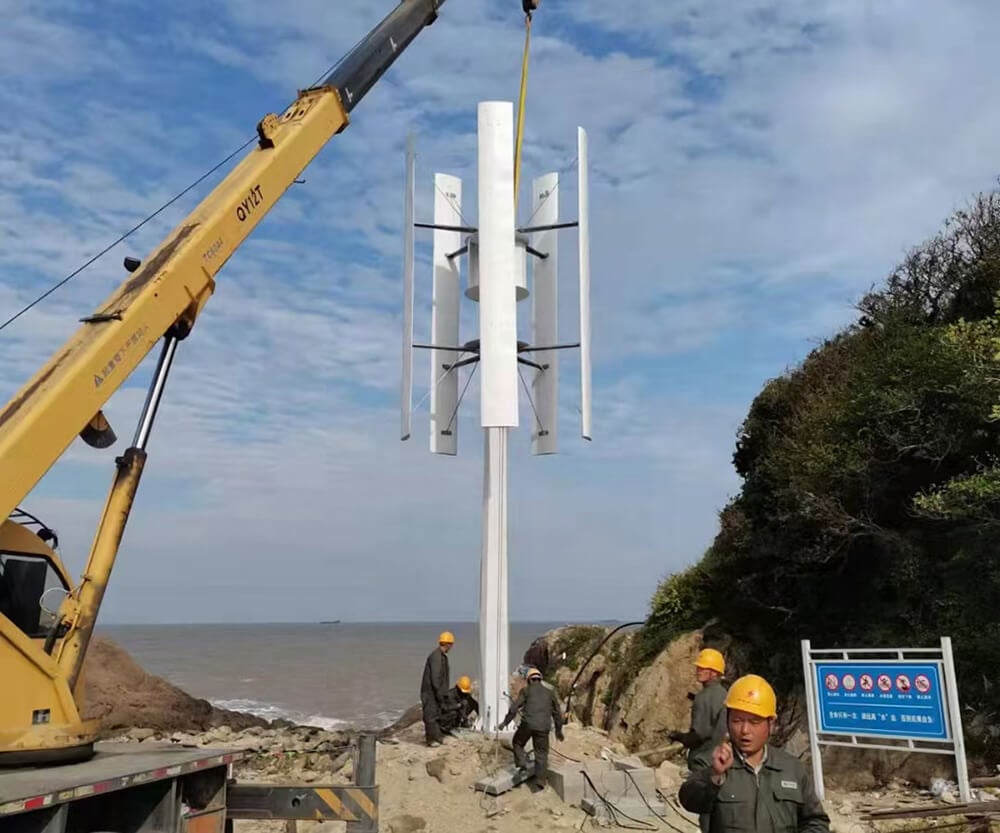

Darrieus vertical axis wind turbines use the principle of lift to convert wind energy into mechanical rotational energy, and are more efficient than Savonius style vertical axis turbines. Darrieus vertical axis wind turbines use blades that have a cross-section shaped like the wing of an airplane. As the wind passes over the blade, the aerofoil effect creates lift, and this is what rotates the turbine (see diagram, below).

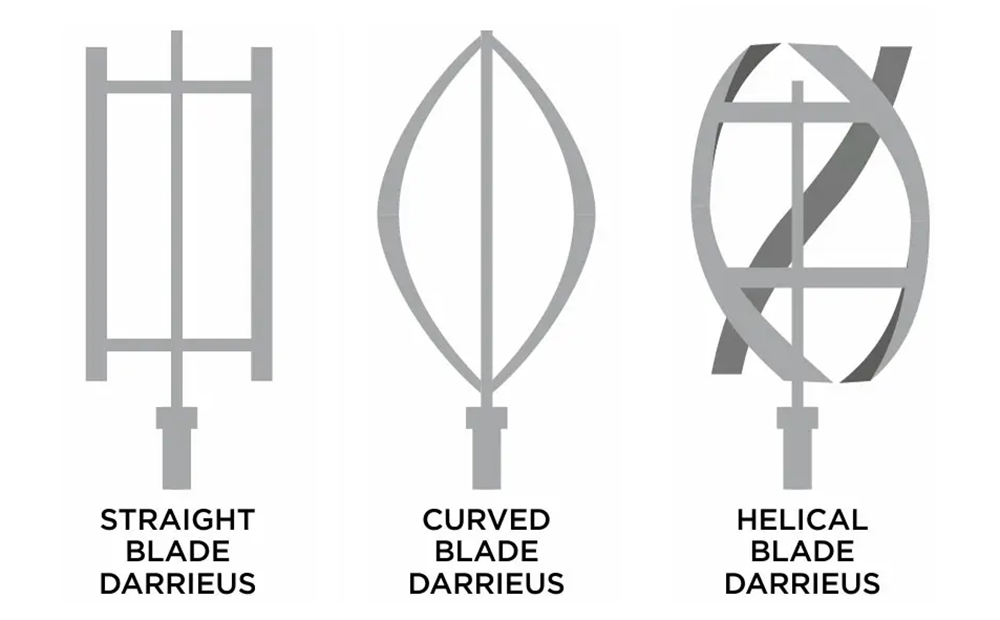

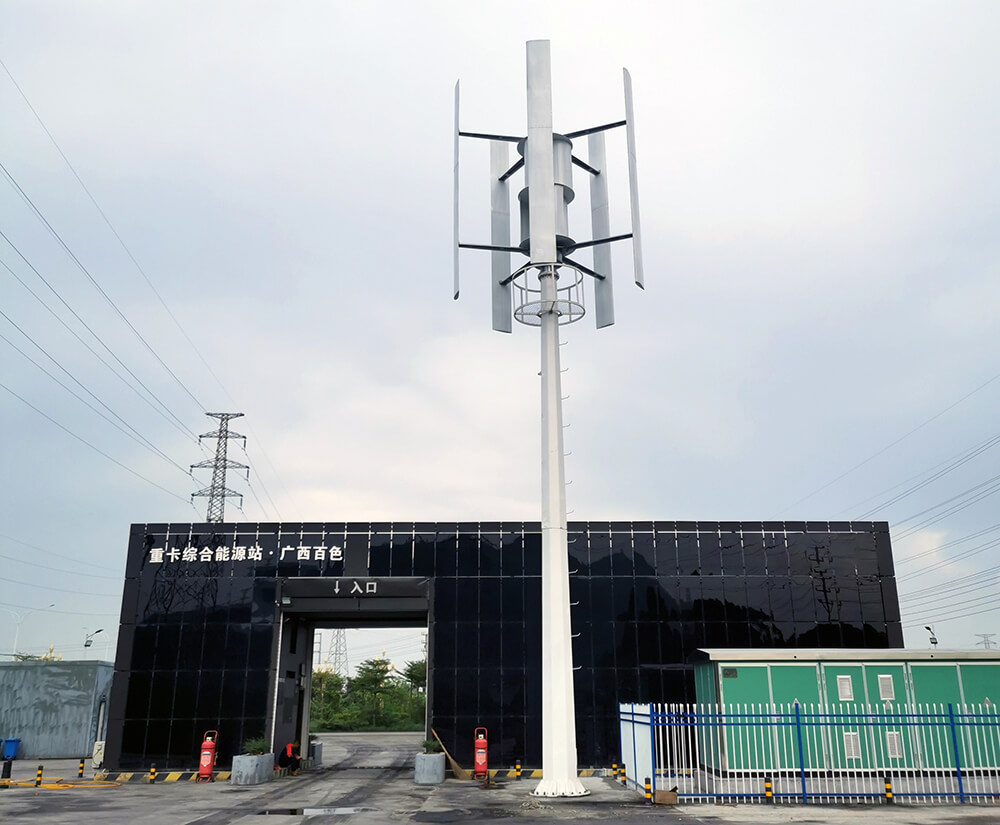

The aerofoil blades of a Darrieus turbine can either be straight, curved, or helical in shape (see diagram, below).

These are all Darrieus turbines – the rotor blades are all the same lift-creating aerofoils, but in different configurations.

The helical configuration is perhaps the most interesting, since it allows a longer aerofoil blade to be contained within the same rotational area as a straight-bladed turbine, thereby capturing more of the wind and increasing efficiency.

Other Turbine Designs

While the majority of wind turbines fall under these two main categories (vertical axis and horizontal axis) there have been various experimental designs that move away from the normal configuration of these two designs.

The Wind Tree

The ‘Wind Tree’ built by Paris-based company New World Wind, is based on a Savonius vertical axis wind turbine, but it is novel in that it uses many small turbines arranged to look like leaves on a tree to make a decorative urban feature.

Vortex Bladeless

Vortex Bladeless is a Spanish company that have utilized a completely different method for extracting kinetic energy from the wind. Their “turbine” doesn’t look like a conventional turbine at all, as it doesn’t rotate.

The Vortex Bladeless system uses a tall, pillar-shaped mast, which extracts energy from the wind using a technique called vortex-induced resonance. As the wind passes the pillar, it causes turbulence behind it, which causes the pillar to oscillate or ‘vibrate’ back and forth, and it is this mechanical energy that drives a linear alternator, thus generating an electric current.

As they have no rotating blades, this style of wind-generator does not present a danger to migrating birds or wildlife.

Vehicle-Powered Turbines

A number of companies have begun developing small-scale vertical axis wind turbines that can be placed in the central reservation of highways and freeways. Rather than being driven by ‘natural’ wind, it is the turbulence caused by the constant stream of vehicles passing at high speed that rotates these turbines. So, whilst they are still conventional vertical axis wind turbines, it is the situation they’re being applied to that is novel.

Cross-axis wind turbine (CAWT)

The cross-axis wind turbine is an experimental vertical axis turbine design that uses both horizontal and vertical turbine blades in a novel cross-linked configuration. With three vertical blades and six horizontal blades, it can capture wind energy coming from both horizontal and vertical directions. Studies found it was 2.5 times more efficient than a conventional vertical axis turbine in the same wind conditions.

Cooling Tower Updraft Turbine

This design proposes a novel configuration of a Darrieus vertical axis wind turbine, orientated horizontally and situated at the top of cooling towers. The updraft from the exhaust air flow from the tower, rather than being wasted to the atmosphere, is used to drive the turbine.
